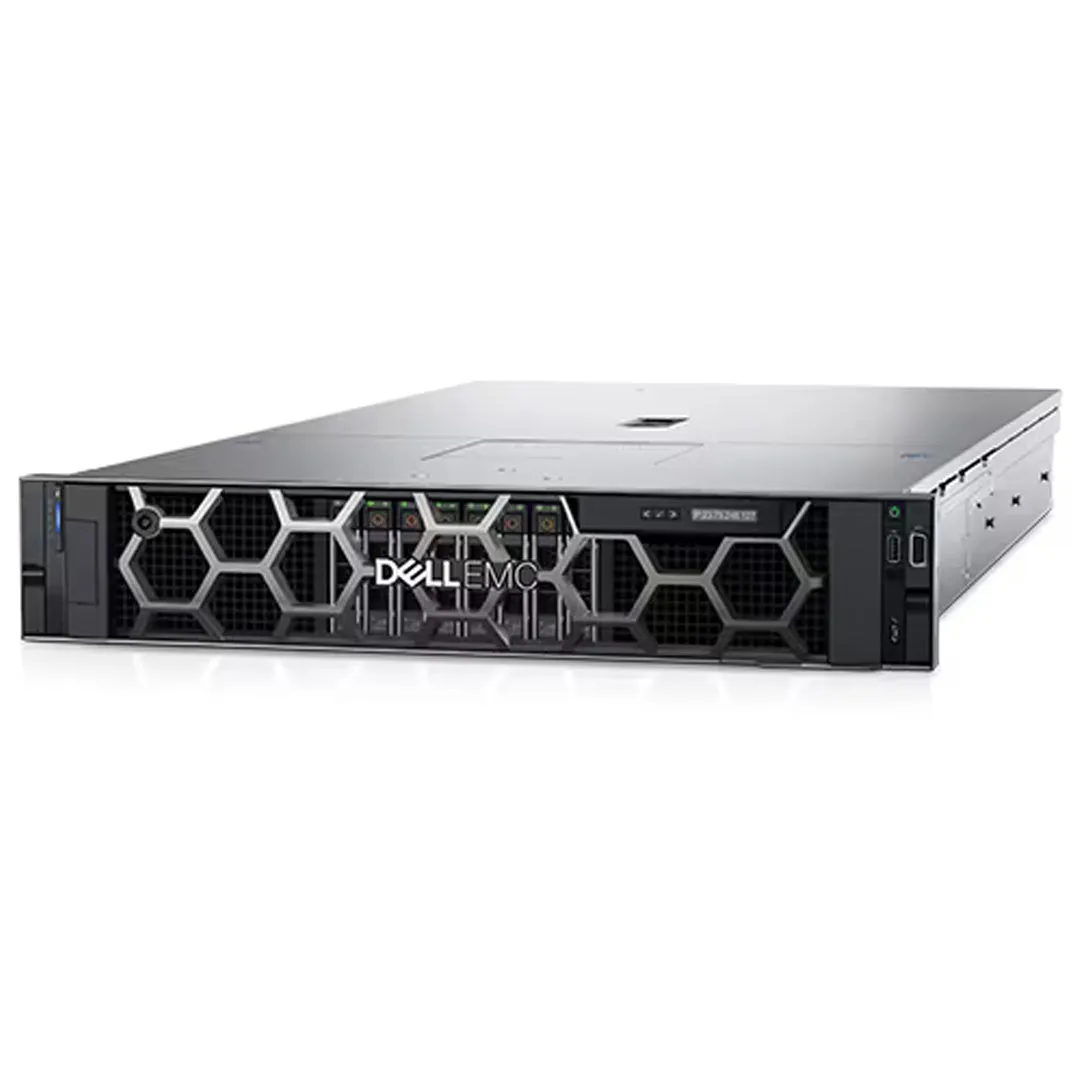

Name: Dell PowerEdge R750xa Rack Server Chassis 6x2.5" NVMe Direct Attached Storage
SKU: 171871

Quick Specs

Form Factor:

2U rack server

Processor | Max: 40 Cores

2x Intel Gen 3 Xeon Scalable

Memory | Max: 2TB (RDIMM) | 8TB (LRDIMM) | 8TB (Pmem)

32 ECC DDR4 RDIMM/LRDIMM 3200Mhz
Up to 16 Intel Persistent Memory 200 series (BPS) slots

Storage | Max: 122.88TB

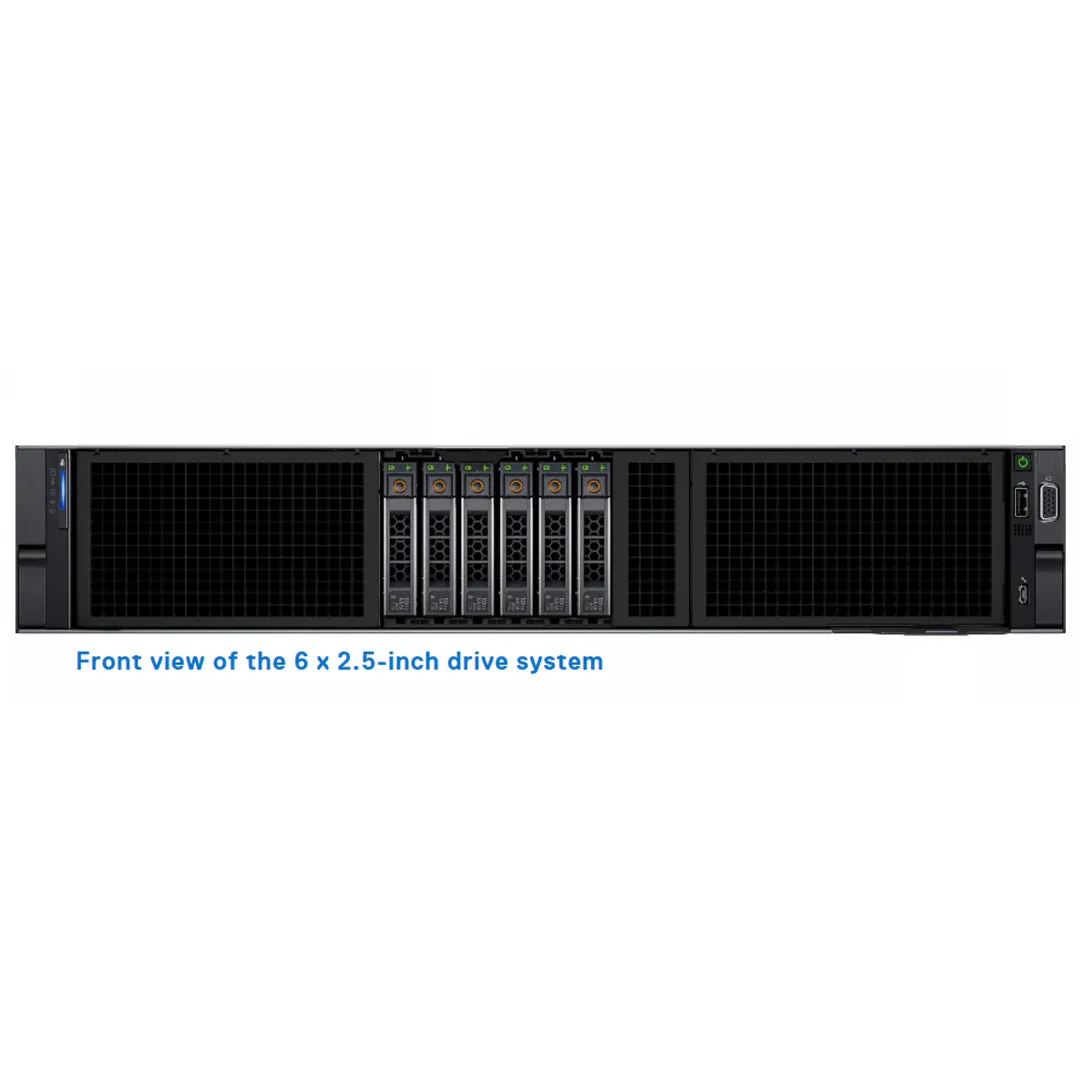

Front bays: 6x U.2 Gen 4 NVMe

Boot Options

Boot Optimized Server Storage (BOSS-S2) Hot-Swap
Boot Optimized Server Storage (BOSS-S1) Cold-Swap
IDSDM
Internal USB

RAID Controller: (fPERC Support)

S150 (SW RAID SATA, NVMe)
H345, H745, H755, H755N, H840, HBA335i, HBA355e

NIC/LOM

2 x 1 GbE LOM BCM5720 LAN controller

OCP 3.0

1 x OCP 3.0 (x8 PCIe lanes)

Remote Management:

iDRAC9 Express (default) with Lifecycle Controller

PCIe Slots:

Up to 8 x PCIe Gen4 slots (up to 6 x16 2 x8)

GPU:

Up to four single-width 150W OR four double-width 300 W in the front and two single-width 75 W at the rear

Other Versions:

Ideal for:

Artificial Intelligence (AI)
Data Analytics
Deep Learning
High-Performance Computing (HPC)
Machine Learning (ML)
Virtual Desktop Interface (VDI)
Virtualization

Innovate at scale with challenging and emerging workloads

The Dell PowerEdge R750xa, powered by the 3rd Generation Intel ® Xeon ® Scalable processors, is a dual-socket/2U rack server that delivers outstanding performance for the most demanding emerging and intensive GPU workloads. It supports 8 channels/CPU, up to 32 DDR4 DIMMs @ 3200 MT/s DIMM speed. In addition, to address substantial throughput improvements the PowerEdge R750xa supports PCIe Gen 4 and up to 8 SAS/SATA SSD or NVMe drives. With one platform that supports all of the PCIe GPUs in the PowerEdge portfolio, this makes the PowerEdge R750xa the ideal server for emerging workloads including AI-ML/DL Training and Inferencing, High-Performance Computing and virtualization environments.

Increase efficiency and accelerate operations with autonomous collaboration

The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.

Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management
Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity
Integrated change management capabilities for update planning and seamless, zero-touch configuration and implementation
Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools

Protect your data assets and infrastructure with proactive resilience

The Dell PowerEdge R750xa server is designed with a cyber-resilient architecture, integrating security deeply into every phase in the lifecycle, from design to retirement.

Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust
Maintain server firmware safety with digitally signed firmware packages
Prevent unauthorized configuration or firmware change with system lockdown
Securely and quickly wipe all data from storage media, including hard drives, SSDs and system memory with System Erase

Memory

The R750xa supports up to 32 DIMMs, with maximum capacity around 10TB per system for 8x 512GB Intel Optane Persistent Memory 200 Series and 8x 128GB LRDIMM connected to per CPU and speeds of up to 3200MT/s.

The R750xa supports registered (RDIMMs) and load reduced DIMMs (LRDIMMs) which use a buffer to reduce memory loading and provide greater density, allowing for the maximum platform memory capacity. Unbuffered DIMMs (UDIMMs) are not supported

DIMM type	DIMM rank	DIMM capacity	DIMM Rated Voltage, Speed
RDIMM	1R	8GB	DDR4 (1.2V), 3200
RDIMM	2R	16GB, 32GB, 64GB	DDR4 (1.2V), 3200
LRDIMM	4R	128 GB	DDR4 (1.2V), 3200

Storage Configuration/Controller Options

The Dell™ PowerEdge™ R750xa is Dell's latest 2-socket, 2U rack servers purposely designed to run all GPU accelerated workloads by supporting the entire PCIe GPUs in Dell™ PowerEdge™ portfolio and using highly scalable memory, I/O, and network options. The systems feature the Intel Xeon Scalable Processor, support to up to 4 double-wide and 8 single-wide GPUs, up to 32 DIMMs, PCI Express® (PCIe) 4.0 enabled expansion slots, and a choice of network interface technologies to cover NIC.

There are only 4 storage configurations in the R750xa, which comprise two backplane options (config 0, config1):

Up to 8x SAS/SATA SSD in a RAID config
Up to 8x NVMe in a RAID config
Up to 6x NVMe direct attach
Up to 4x SAS/SATA SSD in a RAID config Up to 4x NVMe direct attach

Dell's RAID controller options offer performance improvements, including the fPERC solution. fPERC provides a base RAID HW controller without consuming a PCIe slot by using a small form factor and high-density connector to the base planar.

Performance Level	Controller and Description
Entry	S150 (SATA, NVMe) SW RAID SATA, NVMe
Value	H345, H355, HBA355 (Internal/External)
Value Performance	H745, H755, H755N
Premium Performance	H840 Harpoon Chip (LSI 3508) Memory: 8GB DDR4 NV cache 72-bit memory 2133MHz Low profile form factors Dual A15 1.2GHz CPU X8PCIe 3.0, x8 12Gb SAS

Networking OCP 3.0

The R750xa, Gen 15 Rack server by Dell. Provides extra networking via the Open Compute Project (OCP) 3.0 which supports PCIe Gen4. This allows the server to install a NIC without losing a PCIe slot. Depending on the cards support you can have up to 4 ports reaching speeds of 25Gb per port.

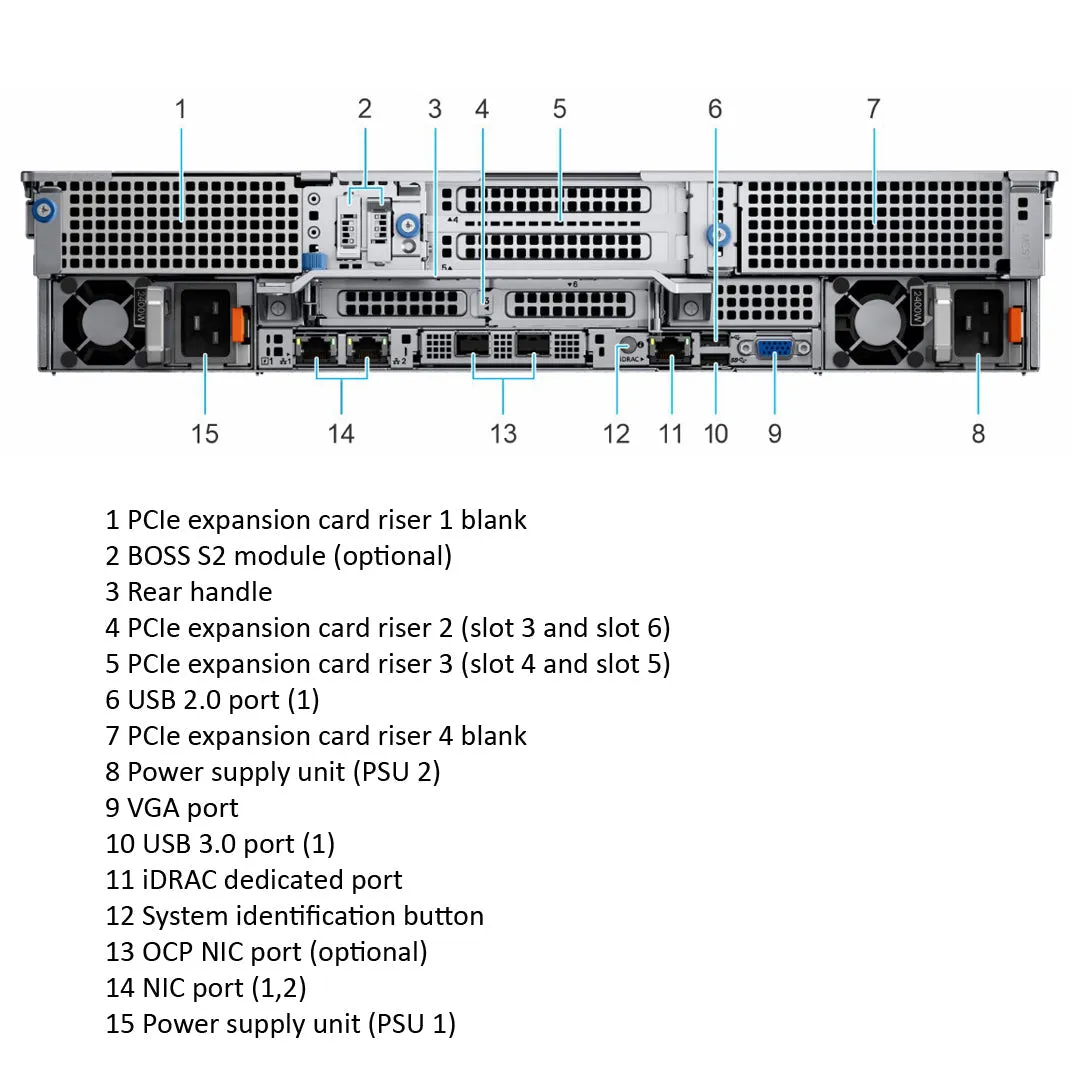

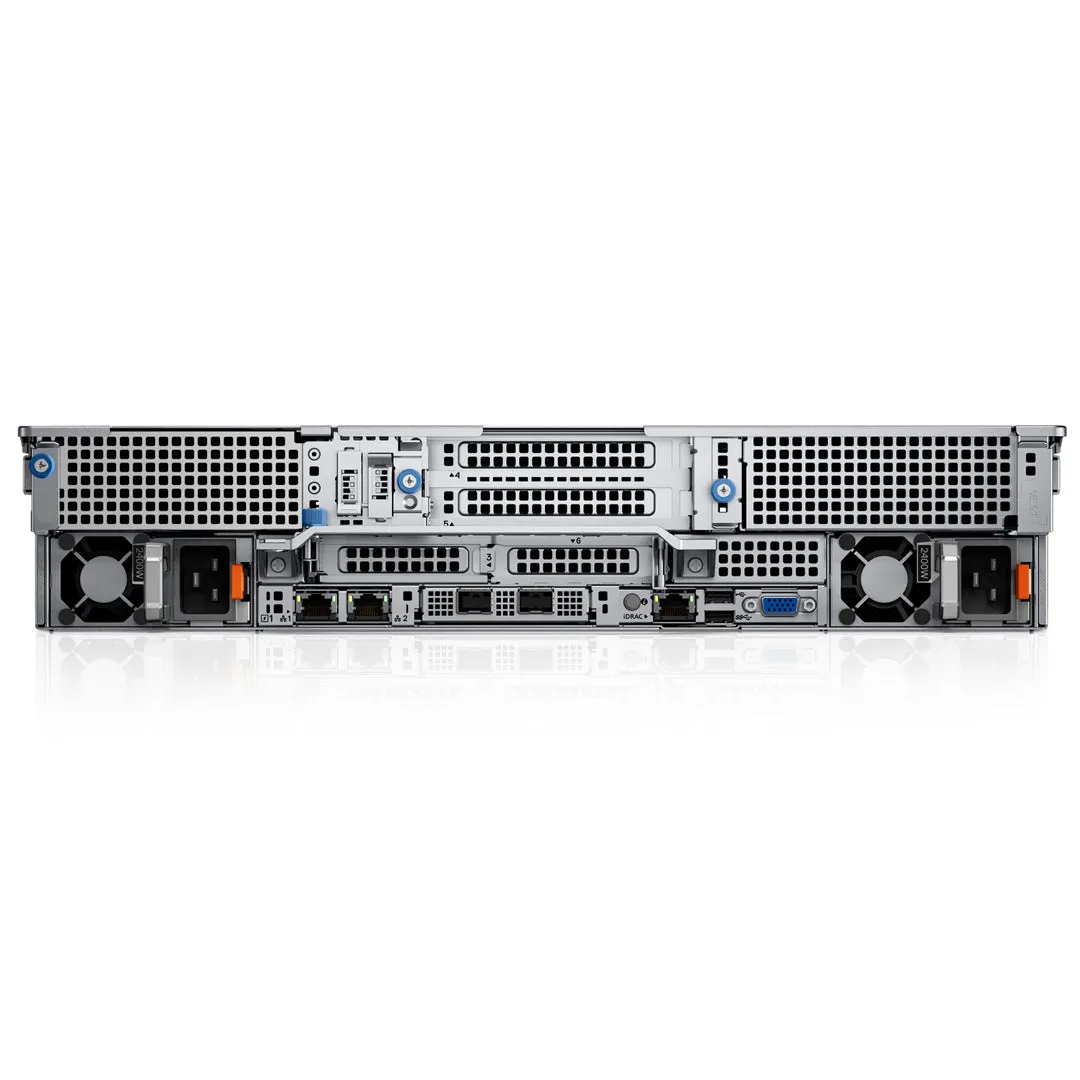

Expansion Riser Configuration Options

Riser Configuration

Configurations	Expansion card risers	PCIe Slots	Controlling processor	Height	Length	Slot width
Config 0-1. with 6x FH, 2x LP and without NVbridge	R2A	3 and 6	Processor 1 and 2	Full height	Half length	x16 x16
	R3B	4 and 5	Processor 2	Full height	Half length	x8 x8
	with	33 and 34	Processor 1	Full Height, double width	Full length	x16 x16
	with	31 and 32	Processor 2	Full Height, double width	Full length	x16 x16
Config 0-2. with 6x FH, 2x LP and with NVbridge	R2A	3 and 6	Processor 1 and 2	Full height	Half length	x16 x16
	R3B	4 and 5	Processor 2	Full height	Half length	x8 x8
	with	33 and 34	Processor 1	Full Height, double width	Full length	x16 x16
	with	31 and 32	Processor 2	Full Height, double width	Full length	x16 x16
Config 1-1. with 4x FH, 2x LP and without NVbridge	R2A	3 and 6	Processor 1 and 2	Full height	Half length	x16 x16
	R3 paddle card	NA	Processor 2	NA	NA	NA
	with	33 and 34	Processor 1	Full Height, double width	Full length	x16 x16
	with	31 and 32	Processor 2	Full Height, double width	Full length	x16 x16
Config 1-2. with 4x FH, 2x LP and with NVbridge	R2A	3 and 6	Processor 1 and 2	Full height	Half length	x16 x16
	R3 paddle card	NA	Processor 2	NA	NA	NA
	with	33 and 34	Processor 1	Full Height, double width	Full length	x16 x16
	with	31 and 32	Processor 2	Full Height, double width	Full length	x16 x16
NOTE: Full length GPU cards must be installed with custom bracket

GPU Riser Left

Slot 32
Slot 31

Riser 2A

Slot 3
Slot 6

Riser 3B

Slot 5
Slot 4

GPU Riser Right

Slot 34
Slot 33

GPU Configuration

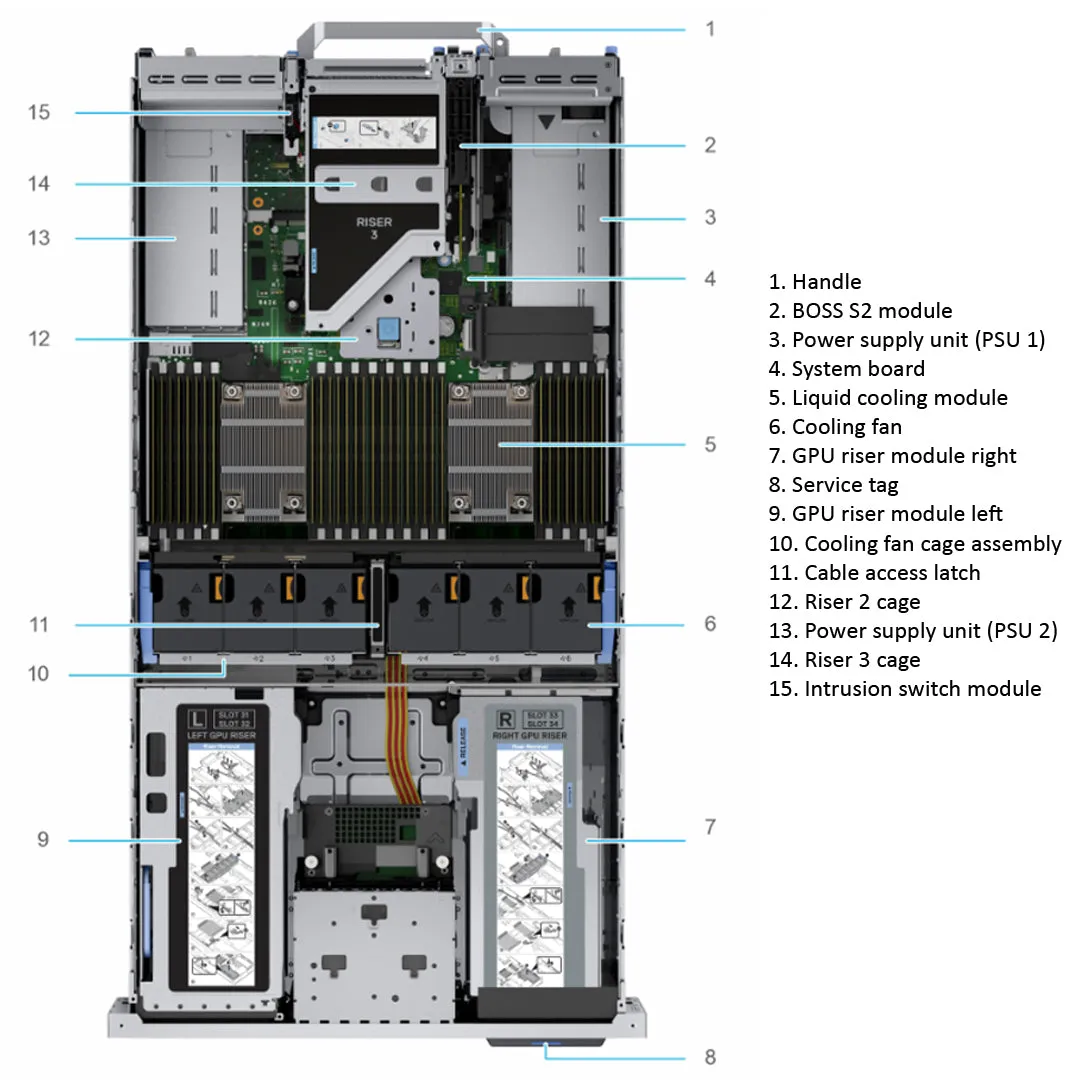

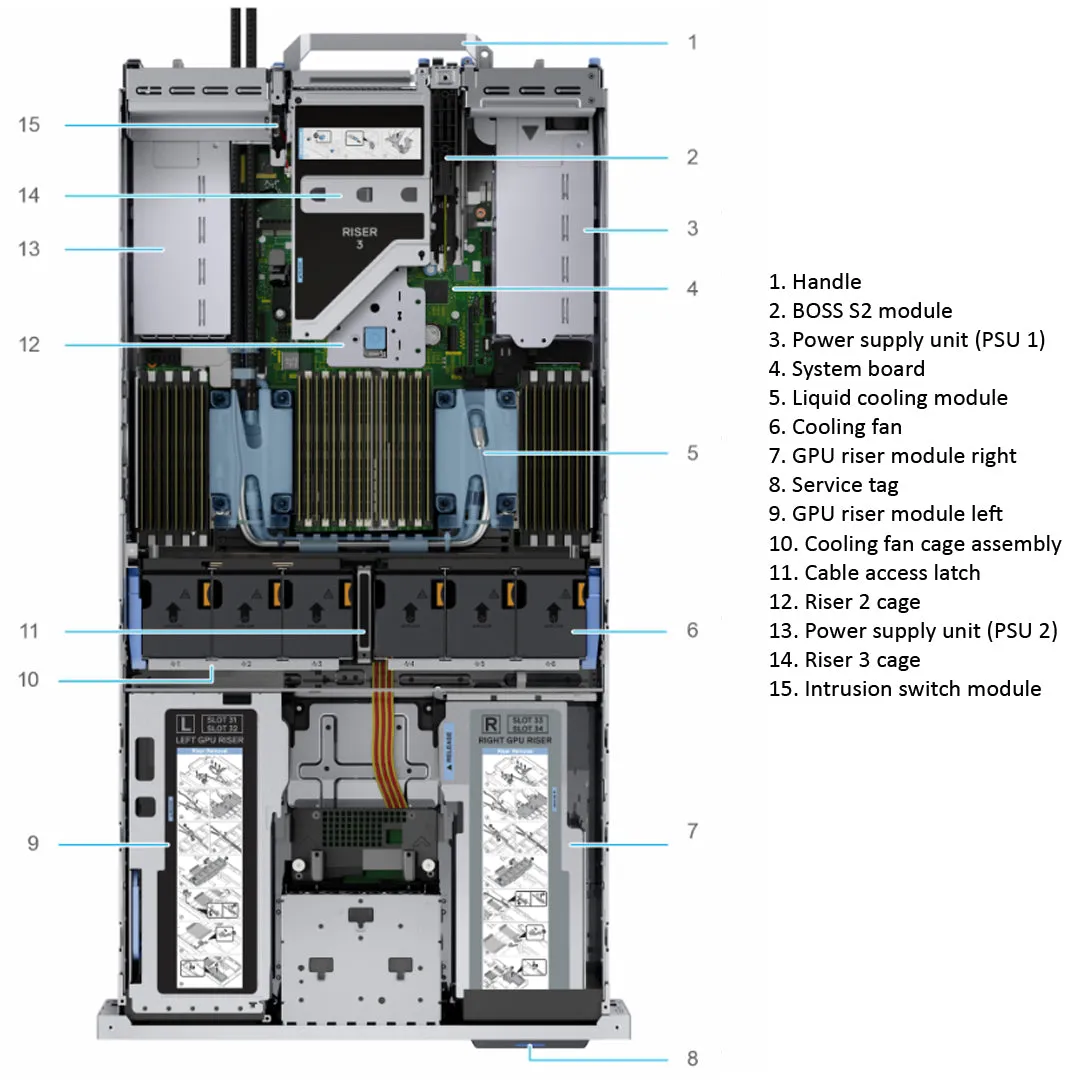

The Dell R750xa holds up to four single-width 150 W or four double-width 300 W in the front of the server. Along with two single-width 75 W at the rear of the system on Riser 3B. The Paddle cards provide the PCIe lanes needed for the GPUs to run. The Image here displays this with the paddle card cabled to the GPU Risers.

NVLINK

The Front GPUs can hold two Double Wide GPUs on each riser. You have the option for to install the NVLINK to boost performance. This 600GB/s NVLINK Bridges is enabled for A100, A40 GPUs only.
